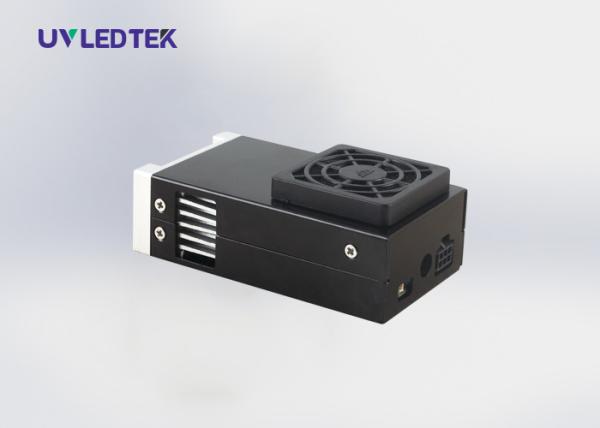

385NM 395NM UV LED lamp for Large width printing air cooling UVLED
system for inkjet curing
Another benefit of curing inks with UV light is that the ink dries
instantaneously, which greatly speeds up production times as well
as helps to improve the overall quality of the product. The speedy
drying time means products are ready for shipment much quicker and
the chance of dust or other airborne objects ruining the finished
product is reduced.
UV Ink Curing Systems Main Features
► Luminous intensity: from 7w/cm2 to 25w/cm2
► Applicable ink: UV Ink
► Substrates: Glass,Wood,PVC,PP,PE,Textiles,Aluminum,Plexiglass
panels,Cardboard,Acrylic plate,MDF,Chevron board or metal sheet
► Cooling method: Air-cooled or Water-cooled
► Wavelength: 365nm,385nm,395nm
► Power: 0-100% can be adjusted
► Abnormal alarm: Over current/Over voltage/Short circuit and so on
► Smart fan control: Adjust the air volume with temperature
► Low noise operation: Less than 5-10dBA
► More focus view angle: 51°
► Ultra-quiet, low power consumption
► Anti-absorbent ink design, maintenance-free
► Intelligent and applicable
► High applicability, satisfying mainstream nozzles such as Epson,
Konica, Ricon, Kyocera
UV Ink Curing Systems Characteristics:
• Stepless adjustment of the specific lamp power from 20 - 100 %.
• Instant-on/off without waiting times.
• No waste disposal of old UV lamps containing heavy metal (GA,
Hg).
• No exposure to ozone of the line operators.
• Excellent penetration of the UV radiation allowing for good
adhesion, also with pigmented lacquers.
• Less danger of uncured photo initiators.
• Reduced risk of fire on UV lines, possibly reduced the insurance
premium.
UV Ink Curing Systems Specification
| Emitting area(mm2) | Wavelength(nm) | Irradiation distance(mm) | Luminous intensity(w/cm2) | Cooling method |
| 40*10 |
395 |
3-10 |
6-25 |
Air cooling / Water cooling |
| 75*10 |
| 110*10 |
| 100*12 |
| 150*12 |
| 160*12 |
| 220*12 |
| 100*20 |
| 150*20 |
| 200*20 |
| 250*20 |
UV Ink Curing Systems Application
• UV flatbed inkjet printing,single-pass inkjet printing
• Digital printing
• Brush code label printing
• Drug code printing
